boltless shelving MDF deck China supplier



boltless shelving with MDF

Boltless rivet shelving increase warehouse capacity and overall storage space with our most popular Rivet System Shelving. Crafted from the highest quality materials, this model is rugged enough to help you organize your bulkiest or heaviest items. You’ll take control of your inventory immediately because the boltless design is quick and easy to assemble. No need for nuts, bolts or shelf clips. Organizing or locating what you need is a snap. The units are fully accessible from all four sides, since cross braces are not needed. All shelves are easily adjustable every 1 1/2’’. Priced to meet the toughest budget, the units are available in a variety of sizes and capacities.

Finish: baked spray paint or powder coating
Color: gray, white, orange, yellow or silver black hammer
Packing: suitable for sea transportation

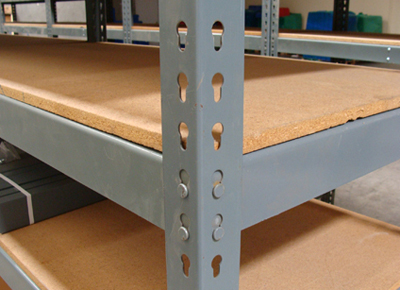

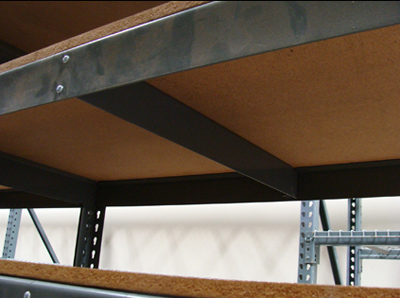

boltless shelving accessary  double rivet beam connector  middle support tie

Pictures:
Description::



Model#
Dimensions
W x D x H
No. of levels
Shelf Capacity
(LBS)
BS-4-721272
72''x12''x72''
4
2000
BS-4-721872
72''x18''x72''
4
2000
BS-4-722472
72''x24''x72''
4
2000
BS-5-841284
84''x12''x84
5
1800
BS-5-842484
84''x24''x84
5
1800
BS-5-962484
96''x24''x84''
5
1500
BS-6-962496
96''x24''x96''
6
1500

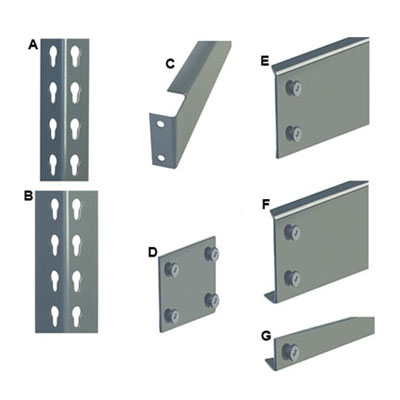

Boltless Rivet Shelving
Regular Angle post
 (37x37x1.8mm, 14Gauge)
Heavy Angle Post
 (47x47x1.8mm, 14Gauge)
Double Rivet Beam
 (21x67x1.5mm, 16Guage)
Shelf Deck Support
 (20x60x1.5mm, 16Guage)
Model#
Weight
 (kgs)
Model#
Weight
 (kgs)
Model#
Weight
 (kgs)
Model#
Weight
 (kgs)
P2.5'
0.65
HP7'
2.46
DR12''
0.304
SDS12''
0.313
P3'
0.77
HP8'
2.81
DR15''
0.381
SDS15''
0.382
P4'
1.03
HP10'
3.51
DR18''
0.457
SDS18''
0.425
P5'
1.3
HP12'
4.22
DR24''
0.61
SDS24''
0.563
P6'
1.59
HP14'
4.92
DR30''
0.762
SDS30''
0.701
P7'
1.8


DR36''
0.914
SDS36''
0.839
P8'
2.06


DR42''
1.066
SDS48''
1.116
P9'
2.3


DR48''
1.214
