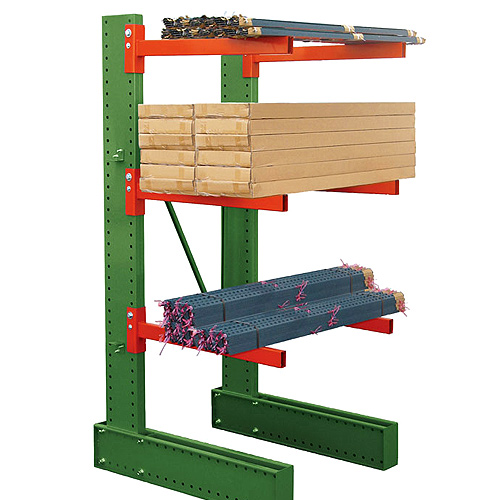

Cantilever rack

Cantilever rack is the ideal system for storing furniture, steel bars, pipe and tubing, lumber and other long, heavy items that must be kept off the floor... provides instant accessibility to one price or a full load. Being modular in nature, additional arms, uprights and braces may be added as storage requirements change.

• Column size: 4" wide x 12" deep.
• Single-sided base: 8.5" wide x 12" height x 63.5" long.
• Double-sided base: 8.5" wide x 12" height x 108" long.

Tubular cantilever rack

I beam cantilever rack, structural cantilever rack, I beam heavy duty cantilever rack

I beam structural cantilever rack

Column 4'' x 12'' x 2.5mm				Brace Set
Model#	Size (L)	Capacity (lbs)	Weight (lbs)	Model#	Size (L)	Capacity (lbs)	Weight (lbs)
HC096	96''	11200	120	HXP36	36''		22
HC120	120''	8400	145	HXP48	48''		26
HC144	144''	6800	172	HXP72	72''		34
HC192	192''	3600	232	HXP96	96''		50
Single Base 8.5'' x 12'' x 2.5mm				Double Base 8.5'' x 12'' x 2.5mm
HBS24	24''		52	HBD24	24''		75
HBS36	36''		64	HBD36	36''		100
HBS48	48''		80	HBD48	48''		126
Regular Duty Arm 4'' x 4'' x 2.0mm, 12 gauge				Heavy Duty Arm 5'' x 6'' x 1.8mm, 14 gauge
HA18	18''	2100	14	HAH24	24''	2400	20
HA24	24''	1800	16	HAH36	36''	2050	24
HA36	36''	1200	20	HAH48	48''	1600	28
HA48	48''	900	24
