托盘式货架

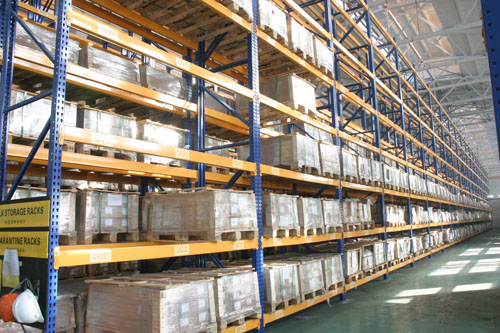

重型托盘货架采用优质钢板经辊压成型，立柱可高达6米而中间无接缝，横梁选用优质方钢，承重力大，不易变形，横梁与立柱之间挂件为圆柱凸起插入，连接可靠、拆装容易，并使用锁钉，以防叉车工作时将横梁挑起；全部货架的表面均经酸洗、磷化静电喷涂等工序处理，防腐防锈，外形美观。广泛用于大型仓库、货仓式超市、制造业、第三方物流和配送中心等领域.

立柱和横梁

托盘式货架

Teardrop Pallet Rack(Interlake Pallet Rack)
All Welded Upright			All Welded Upright			Step Beam 1 5/8’’ step 14 Guage, 1.8mm
Column: 3''x1 5/8'', 14 Guage 76.2x41.2x1.8mm Capacity: 18000 Pound			Column: 3''x3'', 14 Guage 76.2x76.2x1.8mm Capacity: 24000 Pound			Step Beam 1 5/8’’ step 14 Guage, 1.8mm
Model#	Dimension WxH	Weight (lbs)	Model#	Dimension WxH	Weight (lbs)	Model#	Dimension H x L	Weight (lbs)	Capacity (lbs)
Model#	Dimension WxH	Weight (lbs)	Model#	Dimension WxH	Weight (lbs)	Model#	Dimension H x L	Weight (lbs)	Capacity (lbs)
IU1896	18''x96''	39	IU36x96	36''x96''	58	IB3596	3.5'' x 96''	26	3500
IU2496	24''x96''	42	IU42x96	42''x96''	60	IB4096	4'' x 96''	28	5000
IU3696	36''x96''	41	IU48x96	48''x96''	63	IB40108	4'' x 108''	30	4200
IU4296	42''x96''	43	IU36x120	36''x120''	70	IB40120	4'' x 120''	33	3500
IU4896	48''x96''	46	IU42x120	42''x120''	73	IB5096	5'' x 96''	31	7000
IU36120	36''x120''	49	IU48x120	48''x120''	76	IB50108	5'' x 108''	35	6200
IU42120	42''x120''	51	IU36x144	36''x144''	80	IB50120	5'' x 120''	39	5300
IU48120	48''x120''	53	IU42x144	42''x144''	84	IB50144	5'' x 144''	45	3600
IU36144	36''x144''	60	IU48x144	48''x144''	88	IB60120	6'' x 120''	43	6000
IU42144	42''x144''	63	IU36x168	36''x168''	93	IB60144	6'' x 144''	51	6000
IU48144	48''x144''	66	IU42x168	42''x168''	96	Safety Support Bar
			IU48x168	48''x168''	100	ISS36''	36''	5.3
			IU36x192	36''x192''	104	ISS42''	42''	6.2
			IU42x192	42''x192''	108	ISS48''	48''	7.3
			IU48x192	48''x192''	112
			IU36x216	36''x216''	115
			IU42x216	42''x216''	118
			IU48x216	48''x216''	122
